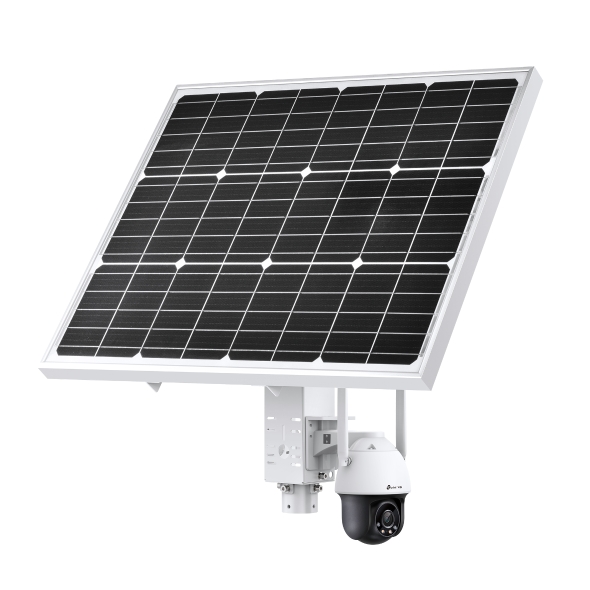

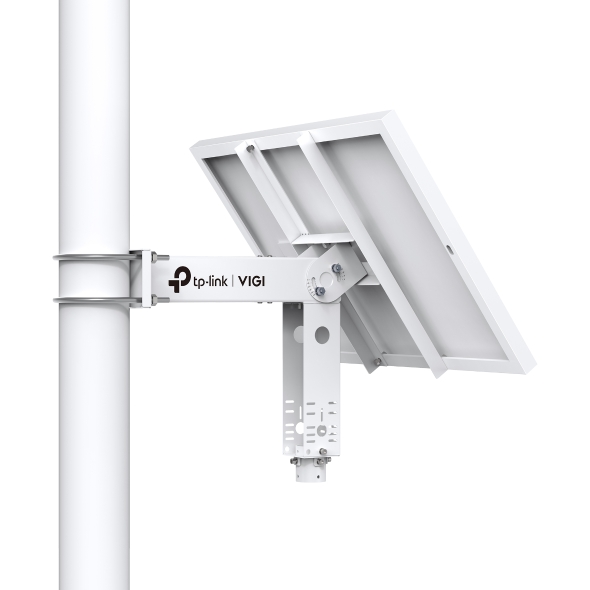

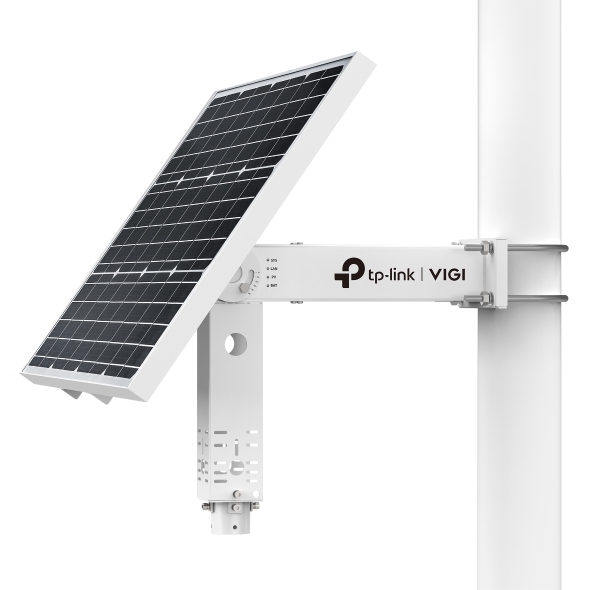

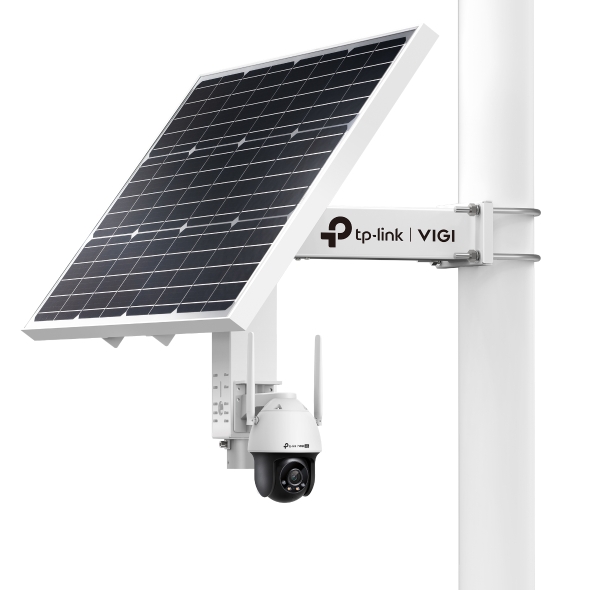

Tp-Link VIGI SP6020 Intelligent Solar Power Supply System

Solar Panel (Photovoltaic Panel)

• Power: 60 W
• Voltage: 18 V

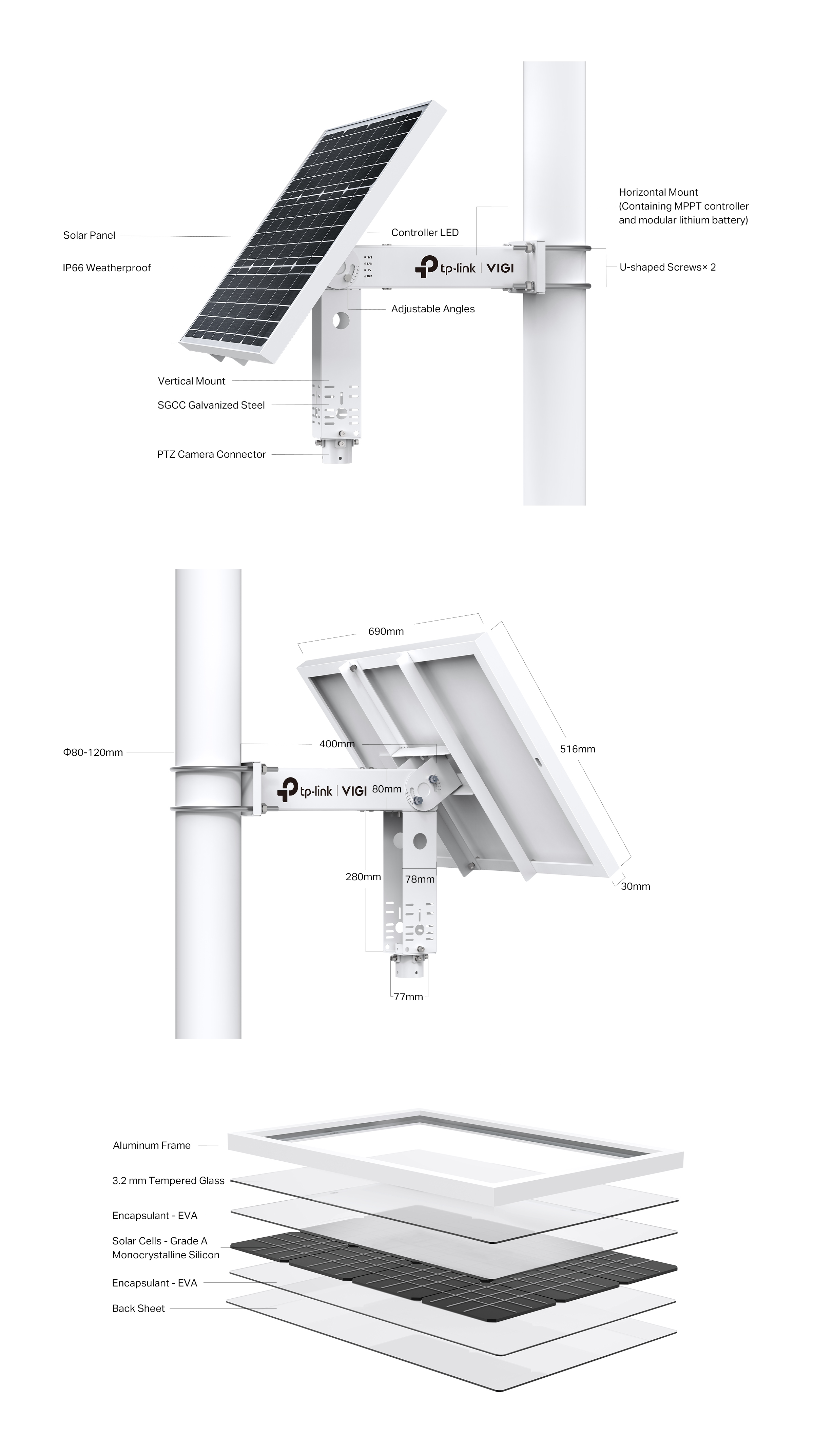

• Dimensions (L x W x H): 690×516×30 mm (27.2×20.3×1.2 in)

Battery

• Type: Lithium
• Intelligent Auxiliary Heat: Yes
• Battery Capacity: 20.8 Ah
• Voltage: 10.8 V
• Max. Output Voltage: 12.6 V
• Life: More than 500 cycles
• Dimension: 242×70×55 mm (9.5×2.8×2.2 in)
• Charging Condition:
  0°C~45°C
  -30°C~45°C (With intelligent auxiliary heating)
• Discharging Condition:
  -20°C~60°C
  -30°C~60°C (With intelligent auxiliary heating)

Angle Adjustment (Manual)

• Range: 5°/15°/25°/35°/45°/55°

HARDWARE

• Interface:
  1× 10/100 Mbps RJ45
  1× Photovoltaic Panel Connector
  3× 5.5mm DC Power Plugs (#1, #2: 9V-12.6 VDC/2A, #3: 12 VDC/2A)
• Indicator LED:
  Quantity: 4 (1× SYS Indicator, 1× LAN Indicator, 1× PV Indicator, 1× BAT Indicator)
  Color: Blue

SOFTWARE FEATURES

• Load Control: Yes
• High and Low Temperature Protection: Yes
• Overdischarge Protection: Yes
• Power Consumption Statistics: Yes
• Displays Real-time Load Status: Yes
• Battery Level Display: Yes
• Time Zone Selection: Yes
• Region Selection: Yes
• Schedule Saving: Yes
• Firmware Remote Update: Yes
• Remote Reboot: Yes
• Local LAN Management: Yes
• Smart Charging Control: -30°C~5°C
• Account Management: Yes
• Web Management: Yes
• Remote Reset: Yes
• Remote Message Push: Yes

OTHERS

• Certification:
  CB, PSE (Battery)
  CE, FCC, VCCI, IC, IP66
• Package Contents:
  VIGI SP6020
  Quick Start Guide
  Waterproof Cable Attachments
  Mounting Accessories
• Box Dimensions (W X D X H): 800×615×225 mm (31.5×24.2×8.9 in)
• Weight:
  Product Weight: 13 kg
  Package Weight: 14.5 kg
• Environment:
  Operating Temperature: -30°C-60°C (With intelligent auxiliary heating)
  Operating Humidity: 10%~90% RH, Non-condensing
