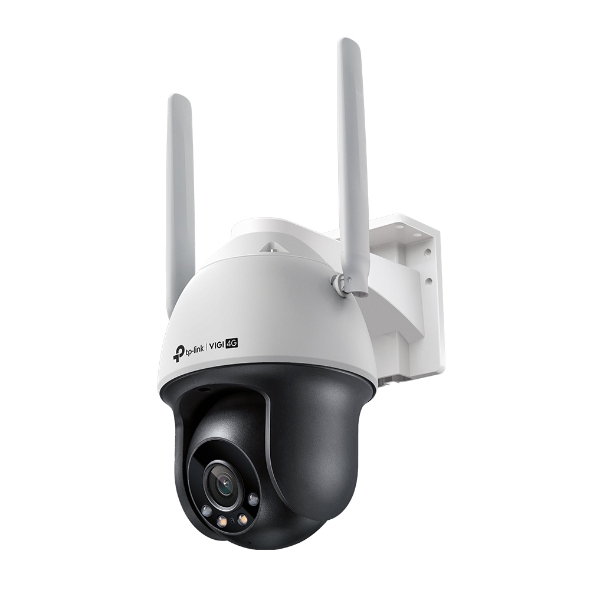

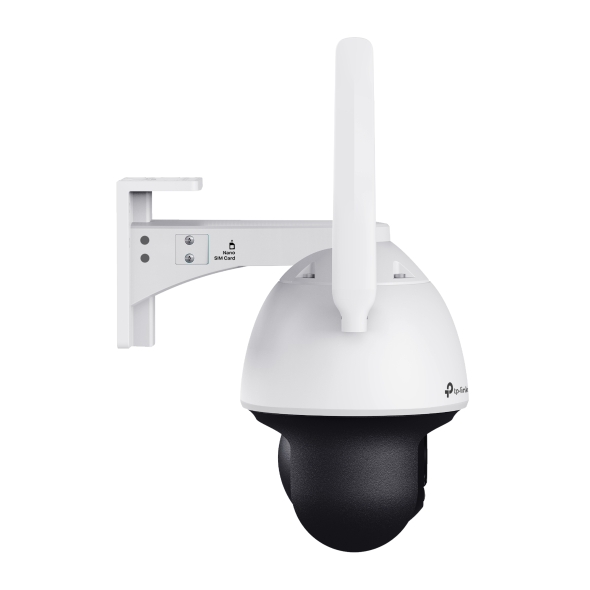

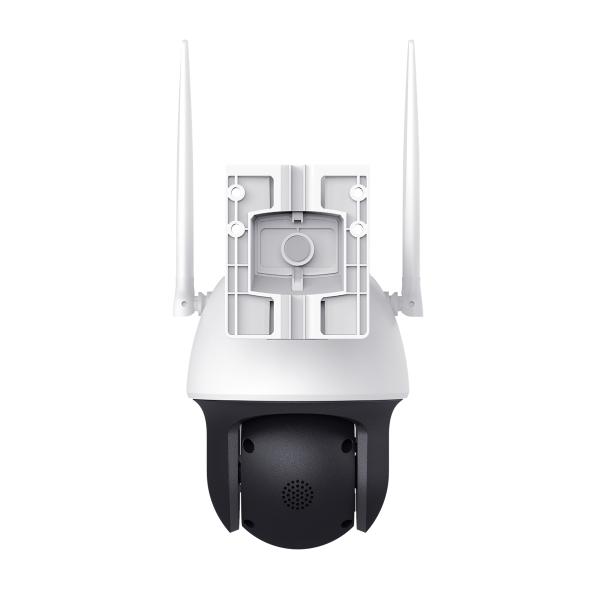

Tp-Link VIGI C540-4G 4MP Outdoor Full-Color 4G Pan Tilt Network Camera
Tp-Link VIGI C540-4G 4MP Outdoor Full-Color 4G Pan Tilt Network Camera
Tp-Link VIGI C540-4G 4MP Outdoor Full-Color 4G Pan Tilt Network Camera
Tp-Link VIGI C540-4G 4MP Outdoor Full-Color 4G Pan Tilt Network Camera
Tp-Link VIGI C540-4G 4MP Outdoor Full-Color 4G Pan Tilt Network Camera
Tp-Link VIGI C540-4G 4MP Outdoor Full-Color 4G Pan Tilt Network Camera
Tp-Link VIGI C540-4G 4MP Outdoor Full-Color 4G Pan Tilt Network Camera
Tp-Link VIGI C540-4G 4MP Outdoor Full-Color 4G Pan Tilt Network Camera
Tp-Link VIGI C540-4G 4MP Outdoor Full-Color 4G Pan Tilt Network Camera
Tp-Link VIGI C540-4G 4MP Outdoor Full-Color 4G Pan Tilt Network Camera

Tp-Link VIGI C540-4G 4MP Outdoor Full-Color 4G Pan Tilt Network Camera

$169.00 inc GST +3 Year Warranty & Support
  • VIGI C540-4G
  • 4MP Super-High Definition: The camera comes with 4MP–more than enough pixels to pick up some of the more discrete details.
  • 24h Full-Color: Experience clear, vibrant 24-hour monitoring, even in total darkness.
  • 4G Mobile Networking: Enjoy hassle-free installation and simple monitoring in places where the internet is not available.
  • 360° Monitoring: Cover every corner and eliminate blind spots.
  • Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
  • Smart Detection: Actively detects abnormal events like area intrusion and line-crossing, sending notifications to you instantly.
  • Automatic Tracking: Automatically tracks persons or vehicles of interest and provides seamless and longer video.
  • Active Defense: Warn potential intruders instantly with sound and light when abnormal events.
  • Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere.
  • H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
  • IP66 Waterproof: Reliable IP66 for stable outdoor performance.
  • Remote Management: Take full control over your security anytime and anywhere on the VIGI app or PC client.
  • Onboard Storage: Support on-board storage up to 256 GB (SD card slot).*

CAMERA

  • Image Sensor: 1/3.06” Progressive Scan CMOS
  • Shutter Speed: 1/3 to 1/10000 s
  • Slow Shutter: Yes
  • Minimum Illumination: 0.005 Lux; 0 Lux with IR/White Light
  • Day/Night Mechanism: IR Cut Filter
  • Day/Night Switch: Unified/ Scheduled/ Auto

LENS

  • Type: Fixed Focal Lens
  • Focal Length: 4 mm
  • Aperture: F1.6
  • FOV: Horizontal FOV: 80°, Vertical FOV: 43°, Diagonal FOV: 94°
  • Lens Mount: M12*0.5
  • DORI Distance:
    • Detect: 80 m (262 ft)
    • Observe: 33 m (109 ft)
    • Recognize: 16 m (52 ft)
    • Identify: 8 m (26 ft)

PTZ

  • Pan/Tilt Range: Pan: 0° to 348°, Tilt: 0° to 120°
  • Pan/Tilt Speed:
    • Pan Speed: Configurable from 8° to 44°/s; Preset Speed: 44°/s
    • Tilt Speed: Configurable from 8° to 44°/s, Preset Speed 44°/s
  • Manual Control Speed: Configurable from 8° to 35°/s
  • Presets: 300
  • Patrol Scan: 8 patrols, up to 8 presets for each patrol
  • Power-off Memory: Yes; Auto restore to previous PT and lens status after power failure
  • Park Action: Yes; Preset; Patrol Scan
  • 3D Positioning: Yes
  • Angle Adjustment (Manual):
    • Pan: 0° to 348°
    • Tilt: 0° to 120°

ILLUMINATOR

  • IR LED:
    • Quantity: 2
    • Range: 30m
    • Wavelength: 850nm
  • White LED:
    • Quantity: 2
    • Range: 30m
  • Illuminator On/Off Control: Auto/Scheduled/Always on/Always off

VIDEO

  • Max. Resolution: 2560 x 1440
  • Main Stream:
    • Frame Rate:
      • 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
      • 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
    • Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720
    • Note: If image rotation is set to 90° or 270°, frame rate supports up to 20fps.
  • Sub-Stream:
    • Frame Rate:
      • 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
      • 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
    • Resolution: 640x480, 352x288, 320x240
    • Note: If image rotation is set to 90° or 270°, frame rate supports up to 20fps.
  • Bit Rate Control: CBR, VBR
  • Video Compression:
    • Main Stream: H.265+/H.265/H.264+/H.264
    • Sub-Stream: H.265/H.264
  • H.264 Type: Main Profile/High Profile
  • H.264+: Main Stream Supported
  • H.265 Type: Main Profile
  • H.265+: Main Stream Supported
  • Video Bit Rate:
    • Main Stream: 256 Kbps to 3 Mbps
    • Sub-Stream: 64 Kbps to 512 Kbps


  • Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation (90°/270°)
  • Image Enhancement: BLC/3D DNR/HLC/SmartIR
  • Wide Dynamic Range: DWDR
  • SNR: ≥ 52 dB
  • Image Parameters Switch: Yes
  • Privacy Mask: Up to 4 Masks
  • ROI: 1 Region
  • OSD Setting: Yes

AUDIO

  • Audio Communication: Two-Way Audio
  • Audio Input: Yes
  • Audio Output: Yes
  • Audio Compression: Yes
  • Audio Sampling Rate: 8KHz
  • Environment Noise Filtering: Yes
  • Audio Bit Rate: 64 Kbps (G.711 alaw)

NETWORK

  • Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, UDP, SSL/TLS
  • ONVIF: Yes
  • API: ONVIF
  • Simultaneous Live View: 2 Main Streams & 2 Sub-Streams
  • Client: VIGI App, VIGI Security Manager, Web UI
  • Web Browser: Google Chrome® 57 and above, Firefox® 52 and above, Safari® 11 and above, Microsoft® Edge 91 and above
  • Cloud: Yes
  • Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

4G

  • Standard: LTE-TDD/LTE-FDD/WCDMA
  • SIM Type: Nano SIM
  • Category: 4
  • Frequency:
    • LTE-FDD: B 1/3/5/7/8/20/28
    • LTE-TDD: B 38/40/41
    • WCDMA: B 1/5/8

ALARM AND EVENT MANAGEMENT

  • Smart Event: Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection, People Detection, Vehicle Detection
  • Basic Event: Motion Detection, Video Tampering Detection, Exception (Illegal Login)
  • Alarm Linkage: Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing
  • Linkage Method: N/A
  • Output Notification: Message Push

INTERFACES

  • Network Interface: 1 RJ45 10/100M Self-Adaptive Ethernet Port
  • Alarm: N/A
  • Reset Button: Yes
  • Power: DC Power Port
  • On-board Storage: Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB

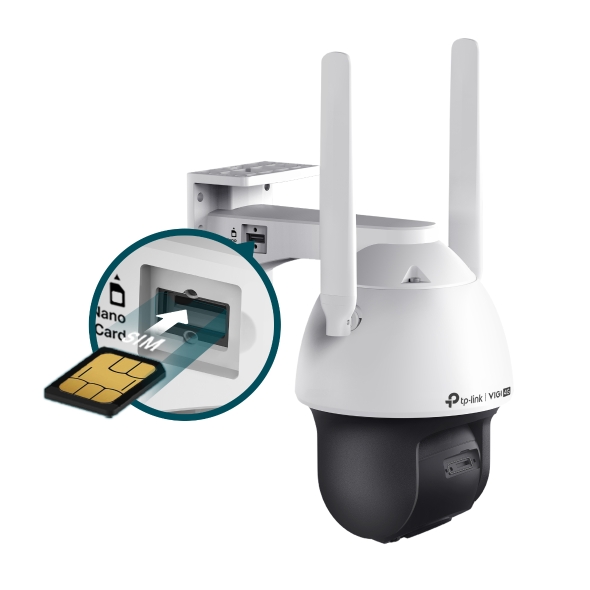

  • Built-in Nano-SIM Card Slot: Yes
  • Built-in Microphone: Yes; Records Anything Within a 15-ft Radius
  • Built-in Speaker: Yes
  • Audio: N/A

GENERAL

  • Operating Temperature: -30–60 °C
  • Storage Temperature: -40–60 °C
  • Operating Humidity: 95% or Less (Non-Condensing)
  • Storage Humidity: 95% or Less (Non-Condensing)
  • Package Contents: VIGI Network Camera, Quick Start Guide, Waterproof Cable Attachments, Mounting Accessories, Power Adapter
  • Material: Plastic
  • Net Weight: 0.69 Kg
  • Gross Weight: 1.16 Kg
  • Power Supply: 12V DC/1A, 5.5mm Coaxial Power Plug

ANTENNA

  • Quantity: 2
  • Type: 690960 & 17102690MHz Dipole Omni-Directional Antenna
  • Gain:
    • Ant1: 0.84dBi@690960MHz, 2.85dBi@17102690MHz
    • Ant2: 0.74dBi@690960MHz, 3.06dBi@17102690MHz

PROTECTION

  • IP66

DIMENSIONS & CERTIFICATIONS

  • Product Dimensions (L x W x H): 120 × 182 × 201 mm (excluding antennas)
  • Certifications: CE, RCM, BSMI, RoHS, NCC

Complete Documentation and Specification Details Manual
