- Cutting-edge 4G network – Share internet access with up to 32 Wi-Fi devices and enjoy download speeds of up to 150 Mbps
- Plug a SIM card and play – No configurations needed, compatibility of SIM cards in 100+ countries are assured by years of field tests
- Wi-Fi router mode – Plug an Ethernet cable into the LAN/WAN port for flexible access if you can't get a 4G connection
Hardware Features

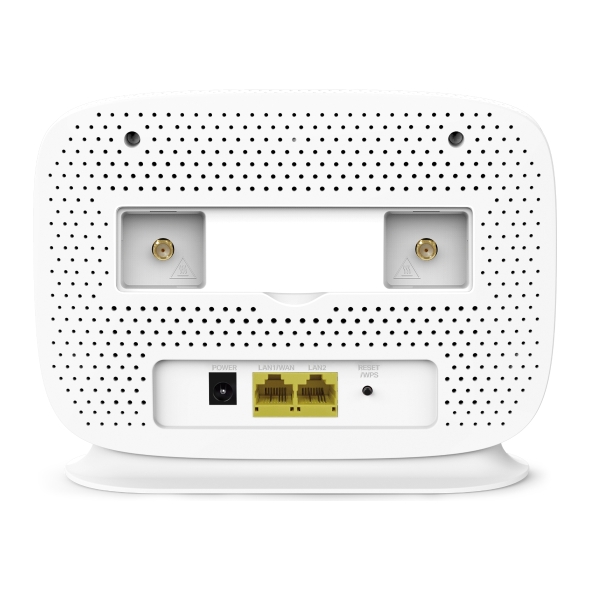

- Interface:
1 × 10/100Mbps LAN Port
1 × 10/100Mbps LAN/WAN Port
1 × Nano SIM Card Slot - Button: Reset/WPS Button
- External Power Supply (EU): 9V/0.85A
- Dimensions (W x D x H): 6.85 × 5.12 × 2.36 in (174 × 130 × 60 mm)
- Antenna:
2 × Internal 4G/3G Antennas
2 × Internal Wi-Fi Antennas
2 × External 4G/3G Antenna Ports
Wireless Features
- Wireless Standards: IEEE 802.11b/g/n
- Frequency: 2.4 GHz
- Signal Rate: 300 Mbps
- Reception Sensitivity:
11g 54M: -74dBm
11n HT20: -73dBm
11n HT40: -70dBm - Transmit Power: < 20 dBm (2.4 GHz)
- Wireless Functions:
Enable/Disable Wireless Radio
Wireless Schedule
WMM
Wireless Statistics - WAN Failover: Yes
- Wireless Security:
64/128-bit WEP
WPA/WPA2
WPA-PSK/WPA2-PSK encryptions - Network Type:
4G: FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/750 MHz)
TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz)
3G: DC-HSPA+/HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)
Software Features
- Security: IPv4 SPI Firewall, IP and MAC Address Binding
- Operating Modes: 3G/4G Router, Wireless Router
- WAN Type: Dynamic IP/Static IP/PPPoE/PPTP (Dual Access)/L2TP (Dual Access)
- Management: Local Management, Remote Management
- DHCP:
Server
DHCP Client List
Address Reservation - Port Forwarding:
ALG
Virtual Server
Port Triggering
UPnP
DMZ - Dynamic DNS: TP-Link, DynDns, NO-IP
- Protocols: IPv4, IPv6
- Guest Network: 2.4 GHz Guest Network
- Administration:
Upgrade Firmware
Factory Default
System Log
Diagnostic Tools
Others
- Certification: CE, RoHS
- Package Contents:
300 Mbps Wireless N 4G LTE TL-MR105
1.5m Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide - Requirements:
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Nano SIM Card - Environment:
Operating Temperature: 0℃~40℃ (32℉~104℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
