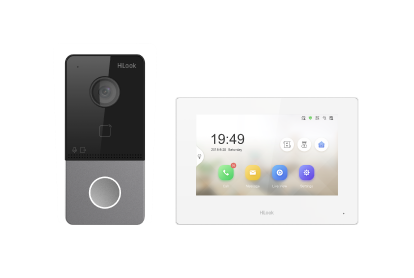

HiLook HA-KIT-IP1 IP Video Intercom Kit

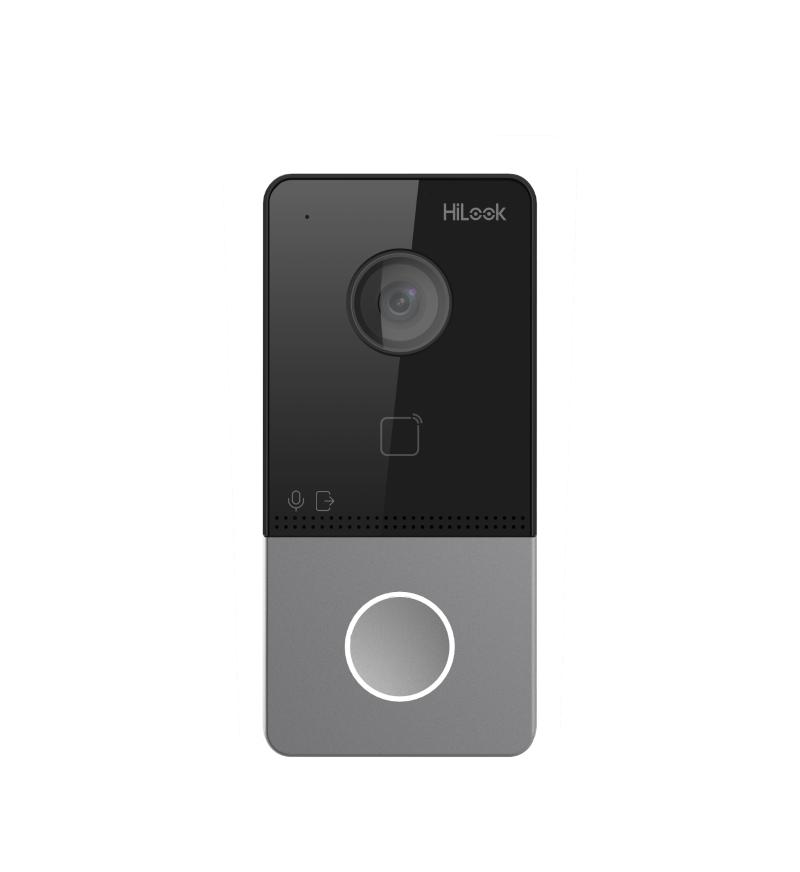

Door station/System parameters

• Operation system:       Embedded Linux operation system
• Flash:           32 MB
• RAM:           256MB

Door station/Video parameters

• Camera:                    2MP HD camera
• Night vision:             Low illumination IR supplement mode:3 m
• Backlight compensation:       Support
• Digital noise reduction:         Support
• WDR:                                       True WDR
• Field of view:                          Horizontal: 131° Vertical: 78°
• Video Compression Standard:     H.264
• Stream:                     Main stream: 1080p@30fps, 720p@25fps Sub stream: D1@25fps
• Motion detection:                Support
• Flash-avoid frequency:        50 Hz, 60 Hz

Door station/Audio parameters

• Audio input:               Built-in omnidirectional microphone
• Audio output:            Built-in loudspeaker
• Audio quality:            Noise suppression and echo cancellation
• Audio compression standard:    G.711 U
• Audio compression Rate:          64 Kbps
• Audio intercom:                Two-way audio communication

Door station/Network parameters

• Network protocol:            TCP/IP, RSTP
• Wired network:                 10/100 Mbps Ethernet

Door station/Device interfaces

• RS-485:                       1
• Alarm input:              4
• Debugging port:       1
• Grounding:                1
• TAMPER switch:        1

Door station/General

• Power consumption:           ＜ 10 W
• Working temperature:        -40° C to 53° C(-40° F to 127.4° F)
• Working humidity:               10% to 95%
• Dimension:                            138 mm × 65 mm × 27 mm
• Installation:                           Surface mounting
• Protection level:                   IP65
• Indicator:                              2
• Power supply:                      IEEE802.3af, standard PoE

                                                12 VDC

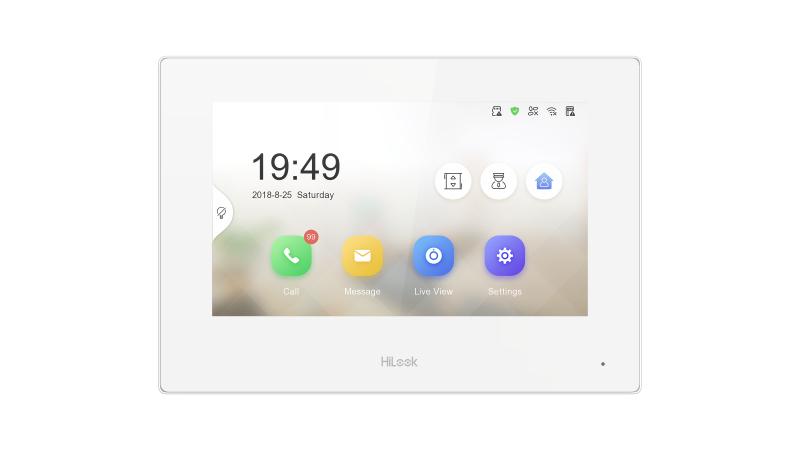

Indoor station/System parameters

• Operation system:            Embedded Linux operation system
• Memory:                            128 MB
• Flash:                                  32 MB

Indoor station/Display parameters

• Display screen:               7-inch colorful TFT screen
• Display resolution:         1024 × 600
• Operation method:        Capacitive touch screen

Indoor station/Audio parameters

• Audio input:                    Built-in omnidirectional microphone
• Audio output:                  Built-in loudspeaker
• Audio quality:                  Noise suppression and echo cancellation
• Audio compression standard:       G.711 U
• Audio compression Rate:              64 Kbps

Indoor station/Network parameters

• Wired network:               10/100 Mbps self-adaptive
• Wireless network:           Wi-Fi 802.11 b/g/n
• Protocol:                          TCP/IP, SIP, RTSP
• RS-485:                       1 RJ-45 10/100 Mbps self-adaptive

Indoor station/Device interfaces

• RS-485:                    1
• Alarm input:            8-ch alarm inputs
• Relay output:          2
• TF card:                    Max to 32 G, SD 2.0 or lower version

Indoor station/General

• Power consumption:             ≤ 6 W
• Working temperature:          -10 °C to 55 °C (14 °F to 131 °F)
• Working humidity:                 10% to 90%
• Dimension (L x W x H):          200 mm × 140 mm × 15.1 mm (7.9" × 5.5" × 0.6")
