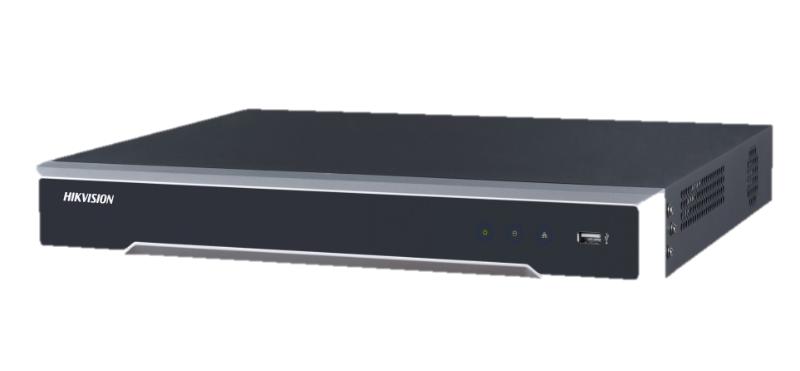

Hikvision DS-7604NI-I1/4P 4-ch 1U 4 PoE 4K NVR

Video and Audio

IP Video Input: 4-ch, up to 12 MP resolution

HDMI Output:
4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

VGA Output:
1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

CVBS Output:
1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480

Incoming Bandwidth: 40 Mbps

Audio Output: 1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ)

Decoding

Decoding Format: H.265, H.265+, H.264, H.264+, MPEG4
Decoding Capability: 2-ch@12 MP (20fps) / 4-ch@8 MP (25fps) / 8-ch@4 MP (30fps)
Synchronous Playback: 4-ch
Recording Resolution: 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF

Network

Network Protocols: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
Network Interface: 1 × RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

PoE

Interface: 4 × RJ-45 10/100 Mbps self-adaptive Ethernet interfaces

Auxiliary Interface

SATA: 1 SATA interface
Capacity: Up to 8 TB capacity for each HDD
USB Interface: Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
Alarm In/Out: 4/1

General

Power Supply: 48 VDC, 1.8 A
Power Consumption: ≤ 15 W
Working Temperature: -10 to +55º C (+14 to +131º F)
Working Humidity: 10% to 90%
Dimensions (W × D × H): 315 × 240 × 48 mm (12.4" × 9.4" × 1.9")
Weight: ≤ 1.18 kg (2.6 lb)
