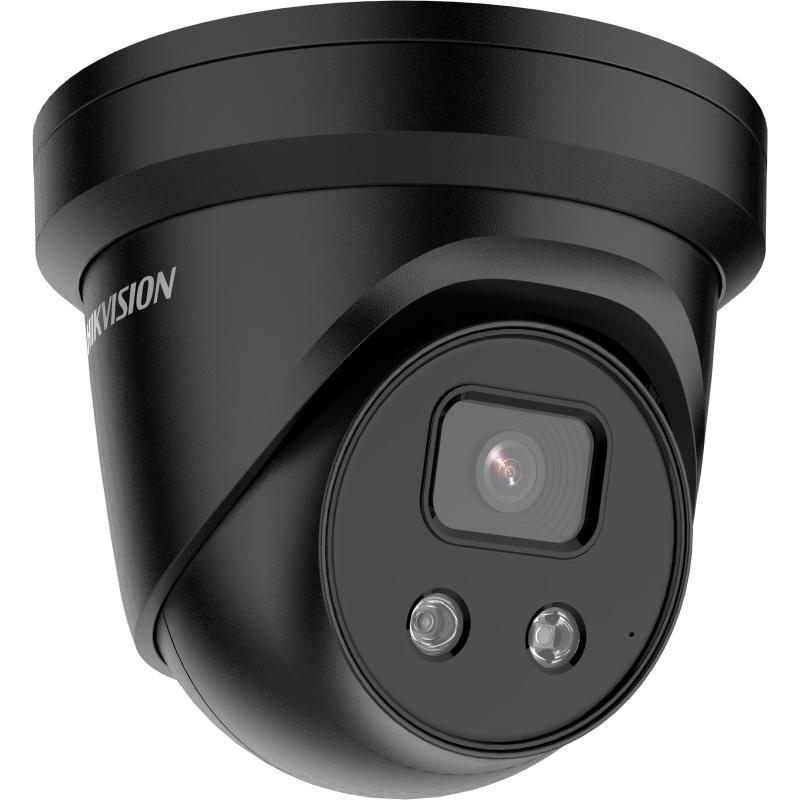

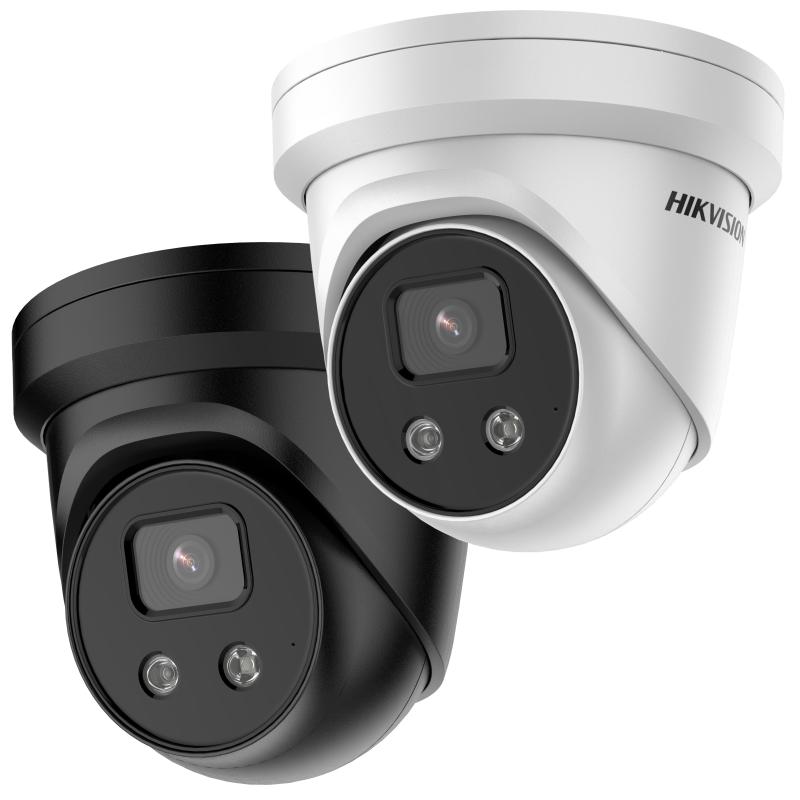

Hikvision DS-2CD2366G2-I(U) 6 MP AcuSense Fixed Turret Network Camera

Camera

• Image Sensor:                 1/2.4" Progressive Scan CMOS
• Max. Resolution:             3200 × 1800
• Min. Illumination:           Color: 0.003 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
• Shutter Time:                   1/3 s to 1/100,000 s
• Day & Night:                    IR cut filter
• Angle Adjustment:            Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°

Lens

• Lens Type:                     Fixed lens, 2.8, 4, and 6 mm optional
• Focal Length & FOV:      2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127°;

                                          4 mm, horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°;

                                          6 mm, horizontal FOV 51°, vertical FOV 26°, diagonal FOV 59°

• Lens Mount:                       M12
• Iris Type:                            Fixed
• Aperture:                               F1.6

DORI

• DORI:                           2.8 mm: D: 76 m, O: 30 m, R: 15 m, I: 7 m;

                                        4 mm: D: 115 m, O: 45 m, R: 23 m, I: 11 m;

                                        6 mm: D: 164 m, O: 65 m, R: 32 m, I: 16 m

Illuminator

• Supplement Light Type:      IR
• Supplement Light Range:    Up to 30 m
• Smart Supplement Light:    Yes
• IR Wavelength:                   850 nm

Video

• Main Stream;

                            50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

                            60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

• Sub-Stream;

                            50 Hz: 25 fps (1280 x 720, 640 × 480, 640 × 360)

                            60 Hz: 30 fps (1280 x 720, 640 × 480, 640 × 360)

• Third Stream:

                           50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

                           60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360),

  *Third stream is supported under certain settings.

• Video Compression :     Main stream: H.265+/H.265/H.264+/H.264,

                                           Sub-stream: H.265/H.264/MJPEG,

                                       Third stream: H.265/H.264 (*Third stream is supported under certain settings.)

• Video Bit Rate:                         32 Kbps to 16 Mbps
• H.264 Type                              Baseline Profile,Main Profile,High Profile
• H.265 Type                               Main Profile
• Bit Rate Control                         CBR,VBR
• Scalable Video Coding (SVC)      H.264 and H.265 encoding
• Region of Interest (ROI)            1 fixed region(s) for main stream and sub-stream

 Audio:

• Audio Type:                    -U: Mono sound
• Audio Compression:    -U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate:              -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Audio Sampling Rate:                  U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise Filtering        -U: Yes

Network

• Protocols:                    TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets, SRTP, SFTP
• Simultaneous Live View:        Up to 6 channels
• API:                                       Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK, ISUP
• User/Host:                      Up to 32 users

                                     3 user levels: administrator, operator, and user

• Security:                   Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
• Network Storage: NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),

                                  Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

• Client:                  iVMS-4200, Hik-Connect, Hik-Central
• Web Browser: Plug-in required live view: IE 10, IE 11,

                           Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,

                             Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Image:

• Image Parameters Switch:              Yes
• Image Settings: Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
• Day/Night Switch:          Day,Night,Auto,Schedule
• Wide Dynamic Range (WDR):120 dB
• SNR:                                          ≥ 52 dB
• Image Enhancement:           BLC,HLC,3D DNR
• Privacy Mask:                         4 programmable polygon privacy masks

Interface

• Ethernet Interface:          1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage:           Built-in memory card slot, support                     microSD/microSDHC/microSDXC card, up to 512 GB
• Built-in Microphone:             -U: Yes
• Reset Key:                              Yes

Event:

• Basic Event:                Motion detection (support alarm triggering by specified                         target types (human and vehicle)),video tampering alarm,exception
• Smart Event:            Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), scene change detection
• Linkage;           Upload to FTP/NAS/memory card,notify surveillance center,send                             email,trigger recording,trigger capture

Deep Learning Function:

• Face Capture:                    Yes

General:

• Power:       12 VDC ± 25%, 0.45 A, max. 5.4 W,Ø5.5 mm coaxial power                                         plug,reverse polarity protection,

                        PoE: IEEE 802.3af, Class 3, max. 6.5 W

• Material :          Metal except for trim ring
• Dimension:          Ø138.3 mm × 111.4 mm (Ø5.4" × 4.4")
• Package Dimension:     170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9")
• Weight:                             Approx. 740 g (1.6 lb.)
• With Package Weight: Approx. 1070 g (2.4 lb.)
• Storage Conditions:     -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions:   -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language:              33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General Function;   Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-flicker

Approval;

• EMC;                CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:                                  2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

                            RCM: AS/NZS CISPR 32: 2015,

                                  KC: KN32: 2015, KN35: 2015

• Safety:                 UL: UL 62368-1,

                             CB: IEC 62368-1: 2014+A11,

                         CE-LVD: EN 62368-1: 2014/A11: 2017

• Environment:    CE-RoHS: 2011/65/EU,

                            WEEE: 2012/19/EU,

                             Reach: Regulation (EC) No 1907/2006

• Protection;        IP67IEC 60529-2013
