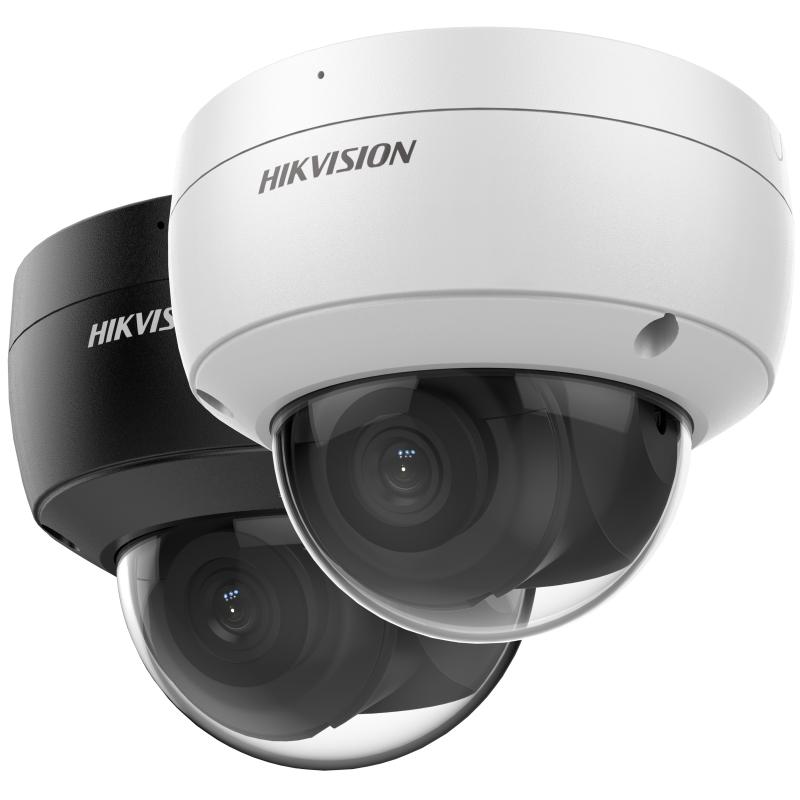

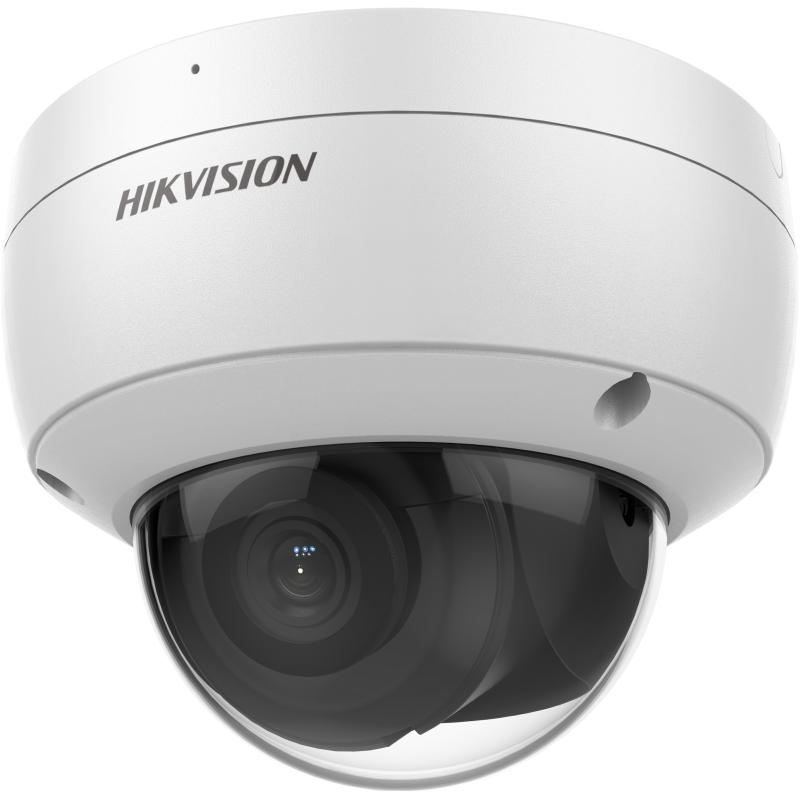

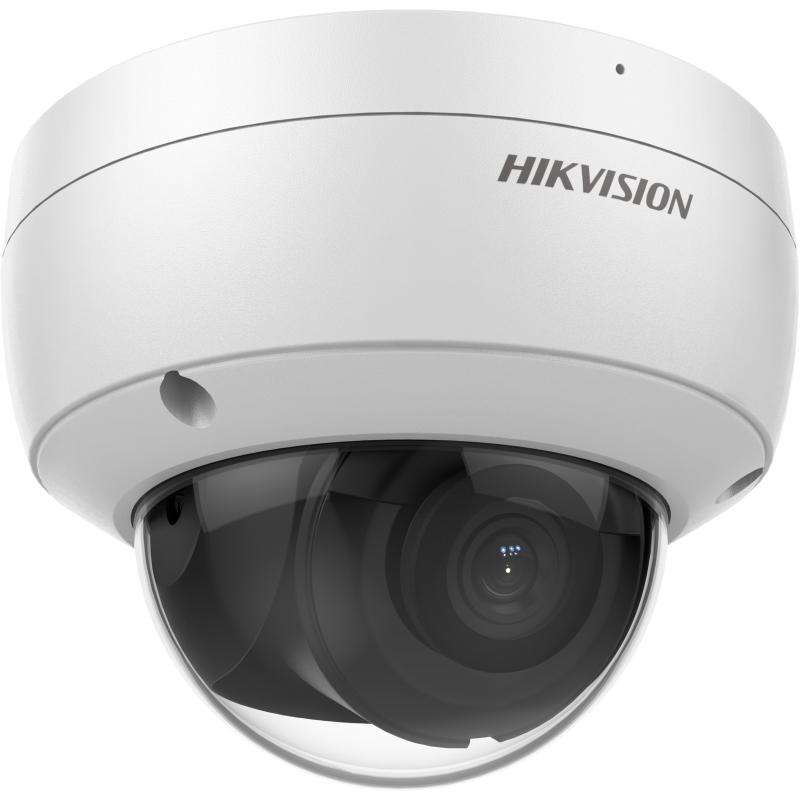

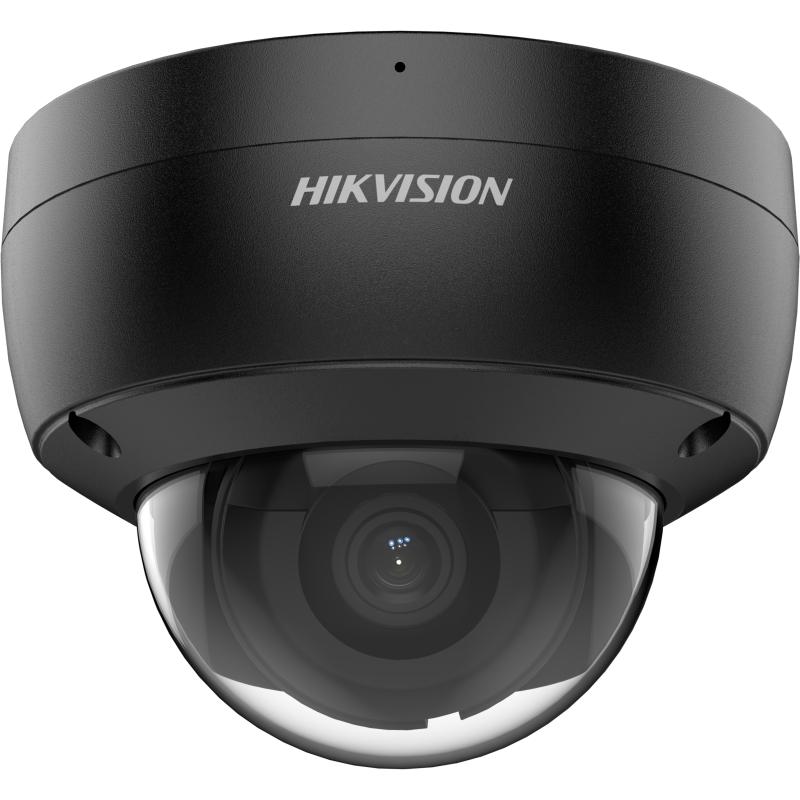

Hikvision DS-2CD2166G2-I(SU) 6 MP AcuSense Fixed Dome Network Camera

Camera

• Image Sensor:              1/2.4" Progressive Scan CMOS
• Max. Resolution:             3200 × 1800
• Min. Illumination:            Color: 0.003 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
• Shutter Time:                      1/3 s to 1/100,000 s
• Day & Night:                           IR cut filter
• Angle Adjustment:                  Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°

Lens

• Lens Type:                      Fixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV:    2.8 mm, horizontal FOV 105°, vertical FOV 55°,                                                     diagonal  FOV 127°; 4 mm, horizontal FOV 78°, vertical                                          FOV 38°, diagonal FOV 96°
• Lens Mount :                 M12
• Iris Type :                     Fixed
• Aperture :                    F1.6

DORI

• DORI:                         2.8 mm: D: 76 m, O: 30 m, R: 15 m, I: 7 m;   4 mm: D: 115                                       m, O: 45 m, R: 23 m, I: 11 m

Illuminator

• Supplement Light Type:                  IR
• Supplement Light Range :              Up to 30 m
• Smart Supplement Light:                           Yes
• IR Wavelength:                                         850 nm

Video

• Main Stream:    50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 ×                            720) 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080,                                1280 × 720)
• Sub-Stream:    50 Hz: 25 fps (1280 x 720, 640 × 480, 640 × 360)60 Hz: 30 fps                               (1280 x 720, 640 × 480, 640 × 360)
• Third Stream:   50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 ×                                       360)60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640                                  ×  360),*Third stream is supported under certain settings.
• Video Compression:    Main stream: H.265+/H.265/H.264+/H.264,Sub-stream:                                     H.265/H.264/MJPEG, Third stream: H.265/H.264 (*Third                                          stream is supported under certain settings.)
• Video Bit Rate:            32 Kbps to 16 Mbps
• H.264 Type:                            baseline Profile,Main Profile,High Profile
• H.265 Type ;                      Main Profile
• Bit Rate Control:                    CBR,VBR
• Scalable Video Coding (SVC):            H .264 and H.265 encoding
• Region of Interest (ROI):     1 fixed region(s) for main stream and sub-stream

Audio

• Audio Type:               -U: Mono sound
• Audio Compression:      -U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate:          -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16                               Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps                                        (MP3)/16 to 64 Kbps (AAC-LC)
• Audio Sampling Rate:        -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise Filtering:           -U: Yes

Network

• Protocols:     TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP,                            NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour,                            SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets, SRTP, SFTP
• Simultaneous Live View:         Up to 6 channels
• API:                                  Open Network Video Interface (Profile S, Profile G,                                                 Profile T),ISAPI,SDK, ISUP
• User/Host:    Up to 32 users 3 user levels: administrator, operator, and user
• Security:            Password protection, complicated password, HTTPS                                        encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-                             MD5),  watermark, IP address filter, basic and digest authentication                     for HTTP/HTTPS, WSSE and digest authentication for Open                             Network  Video Interface, RTP/RTSP over HTTPS, control timeout                        settings,  audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
• Network Storage:    NAS (NFS, SMB/CIFS),Auto Network Replenishment                                    (ANR),Together with high-end Hikvision memory card, memory                           card encryption and health detection are supported.
• Client :             iVMS-4200,Hik-Connect,Hik-Central
• Web Browser:    Plug-in required live view: IE 10, IE 11,Plug-in free live view:                                Chrome 57.0+, Firefox 52.0+, Edge 89+,Local service: Chrome                                  57.0+, Firefox 52.0+, Edge 89+


• Image Parameters Switch:               Yes
• Image Settings: Rotate ode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
• Day/Night Switch:        Day,Night,Auto,Schedule
• Wide Dynamic Range (WDR):              120 dB
• SNR:                                                    ≥ 52 dB
• Image Enhancement:                    BLC,HLC,3D DNR
• Privacy Mask:            4 programmable polygon privacy masks

Interface

• Ethernet Interface:           1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage:         Built-in memory card slot, support                                                                       microSD/microSDHC/microSDXC card, up to 512 GB
• Built-in Microphone:                   -U: Yes
• Audio:                               -S: 1 input (line in), max. input amplitude: 3.3 vpp,                                     input impedance:4.7 KΩ, interface type: non-equilibrium; 1                                    output (line out), max. output amplitude: 3.3 vpp, output                               impedance: 100 Ω, interface type: non-equilibrium, mono sound
• Alarm:                     -S: 1 input, 1 output (TTL: max. 12 VDC, 30 mA)
• Reset Key:                    Yes

Event

• Basic Event:             Motion detection (support alarm triggering by specified                                        target types (human and vehicle)),video tampering                                                 alarm,exception, alarm input and output (-S)
• Smart Event:      Line crossing detection, intrusion detection, region entrance                            detection, region exiting detection (support alarm triggered by                        specified target types (human and vehicle)),Scene change detection
• Linkage :             Upload to FTP/NAS/memory card,notify surveillance                                         center,send email,trigger recording,trigger capture,trigger                                            alarm  output (-S), audible warning (-S)

Deep Learning Function

• Face Capture:                          Yes

General

• Power:    12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse                   polarity protection,PoE: IEEE 802.3af, Class 3, max. 7.5 W
• Material:             Aluminum alloy body, bubble: plastic
• Dimension:               Ø121.4 mm × 92.2 mm (Ø4.8" × 3.6")
• Package Dimension:           150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
• Weight:                              Approx. 440 g (1.0 lb.)
• With Package Weight:             Approx. 670 g (1.47 lb.)
• Storage Conditions:            -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or                                                less (non-condensing)
• Startup and Operating Conditions:   -30 °C to 60 °C (-22 °F to 140 °F).                                                                      Humidity 95% or less (non-condensing)
• Language:    33 languages: English, Russian, Estonian, Bulgarian, Hungarian,                          Greek, German, Italian, Czech, Slovak, French, Polish, Dutch,                             Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish,           Croatian,   Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian


• General Function:   Heartbeat,mirror,flash log,password reset via email,pixel                                       counter,anti-flicker

Approval

• EMC:     FCC: 47 CFR Part 15, Subpart B,CE-EMC: EN 55032: 2015, EN 61000-3-                      2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1:                          2014,RCM: AS/NZS CISPR 32: 2015,KC: KN32: 2015, KN35: 2015
• Safety:            UL: UL 62368-1,  CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-                            1: 2014/A11: 2017
• Environment:        CE-RoHS: 2011/65/EU,   WEEE: 2012/19/EU,Reach:                                                     Regulation (EC) No 1907/2006
• Protection:                   IP67: IEC 60529-2013,IK10: IEC 62262:2002
•
