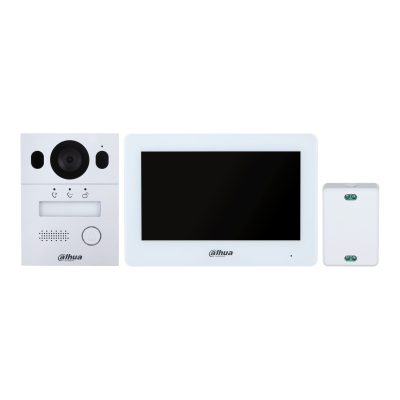

Dahua KTX01 Video Intercom KIT

$500.00 inc GST +3 Year Warranty & Support
A$500.00

2-wire Wi-Fi Hybrid Indoor Monitor:

  • 7" TFT capacitive touch screen.
  • Offers video intercom that communicates with VTOs through half-duplex, and the app through full-duplex.
  • Supports recording videos and capturing snapshots. (SD card is required).
  • 6-channel alarm input and 1-channel alarm output.
  • The app can be used to receive calls and alarm notifications.
  • Connects to HDCVI camera.

2-wire Hybrid Villa Door Station:

  • Aluminum alloy front panel.
  • Auto IR illumination.
  • Video messages can be left for unanswered calls. (SD card is required for VTH).
  • Features nameplate and DWDR.
  • Supports local lock and second lock.
  • Offers anti-tampering alarm.
  • IP65 and IK07 rated.

DHI-VTO2003F

System

  • Main Processor: Embedded Processor
  • Button Type: Mechanical

Basic

  • Camera: 1/2.8" 2 MP CMOS HDR Camera
  • Field of View: H: 110°; V: 60°
  • WDR: DWDR
  • Noise Reduction: 3D NR
  • Video Resolution:
    P: 960 (H) × 576 (V)
    N: 960 (H) × 480 (V)
  • Video Frame Rate:
    P: 25 fps
    N: 30 fps
  • Light Compensation: Auto IR
  • Day/Night: Auto (ICR) / Color / B/W
  • Audio Input: 1
  • Audio Output: Built-in speaker
  • Audio Mode: Two-way audio (half-duplex)

Function

  • Unlock Mode: Remote unlock
  • Leave Videos: Yes (SD card inserted in VTH is needed)

Performance

  • Casing Material: Aluminum Alloy

Port

  • RS-485: 1
  • Alarm Output: 1
  • Power Output: 1 × 12 VDC output, 200 mA
  • Exit Button: 1
  • Door Status Detection: 1
  • Lock Control: 1

Alarm

  • Tamper Alarm: Yes

General

  • Appearance Color: Silver
  • Power Supply: 2-wire controller
  • Installation: Flush mount; surface mount
  • Certifications: CE; FCC
  • Product Dimensions: 130 mm × 96 mm × 28.5 mm (5.12" × 3.78" × 1.12")
  • Protection: IP65, IK07
  • Operating Temperature: –40 °C to +60 °C (–40 °F to +140 °F)
  • Operating Humidity: 10%–95% (RH), non-condensing
  • Operating Altitude: 0 m–3000 m (0 ft – 9842.52 ft)
  • Power Consumption: ≤ 1.5 W (standby), ≤ 10 W (working)
  • Gross Weight: 0.502 kg (1.11 lb)
  • Storage Temperature: –40 °C to +70 °C (–40 °F to +158 °F)
  • Storage Humidity: 95% (RH), non-condensing

DHI-VTH5123H-W

System

  • Main Processor: Embedded Processor
  • Operating System: Embedded operating system
  • Network Protocol: IPv4; UDP; DNS; TCP

Basic

  • Screen Type: Capacitive Touchscreen
  • Display Screen: 7" TFT
  • Screen Resolution: 1024 (H) × 600 (V)
  • Audio Compression: G.711a; G.711u; PCM
  • Audio Input: 1
  • Audio Output: Built-in speaker
  • Audio Mode:
    Two-way audio with VTO (half–duplex)
    Two-way audio with app (full–duplex)
  • Audio Enhancement: Echo suppression/digital noise reduction
  • Audio Bit Rate: 16 kHz; 16 bit

Function

  • Leave Videos: Yes (SD card needed)
  • DND Mode: Do not disturb period can be set; Do not disturb mode can be set.
  • Number of Extensions: 5
  • Wi-Fi: Yes
  • Wireless Standard: IEEE802.11b/802.11g/802.11n
  • Wireless Frequency Range: 2.4 GHz
  • Max Transmission Power: ≤20 dBm @ 2,400–2,483.5 MHz
  • Storage: Micro SD card (up to 64 GB)

Port

  • RS-485: 1
  • Alarm Input: 6
  • Alarm Output: 1
  • Power Output: 1 (12 V, 200 mA)
  • Door Bell: Yes (use the alarm input port)

Performance

  • Casing Material: PC + ABS

General

  • Appearance Color: White
  • Power Supply: 2-wire controller
  • Installation: Surface Mount
  • Certifications: CE; FCC
  • Product Dimensions: 130 mm × 189 mm × 23.9 mm (5.12" × 7.44" × 0.94")
  • Operating Temperature: –10 °C to +55°C (14 °F to +131 °F)
  • Operating Humidity: 10%–95% (RH)
  • Operating Altitude: 0 m–3000 m (0 ft – 4265.09 ft)
  • Power Consumption: ≤ 2.5 W (standby), ≤ 10 W (working)
  • Gross Weight: 0.633 kg (1.40 lb)
  • Storage Temperature: –40 °C to +70°C (–40 °F to +158 °F)
  • Storage Humidity: 95% (RH), non-condensing

Performance

  • Casing Material: PC + ABS

General

  • Appearance Color: White
  • Power Supply: 48 VDC
  • Certifications: CE; FCC
  • Accessory: Included: Line termination terminal
  • Product Dimensions: 65.2 mm × 46.2 mm × 23.2 mm (2.57" × 1.82" × 0.91")
  • Operating Temperature: –10 °C to +55°C (14 °F to +131 °F)
  • Operating Humidity: 10%–95% (RH)
  • Operating Altitude: 0 m–3000 m (0 ft – 4265.09 ft)
  • Power Consumption: 3.5 W
  • Gross Weight: 0.13 kg (0.29 lb)
