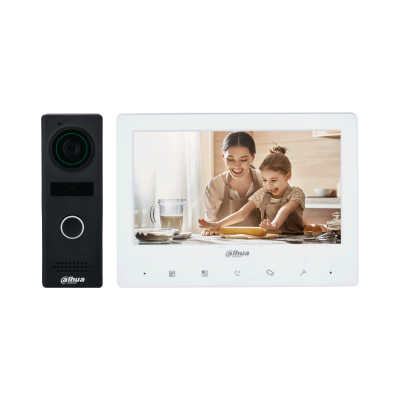

Dahua DHI-KTA02M Video Intercom KIT

• Communication Method: Analog

Performance

• Casing: PC + ABS

General

• Color: White
• Power Supply: DC 12V/1A
• Power Adapter: Included
• Installation: Surface mount
• Certifications: CE/FCC
• Accessory:
  Bracket (included)
  5 m (16.40 ft) cable (included)
• Dimensions: 133.90 mm × 182.70 mm × 17.70 mm (5.27" × 7.19" × 0.70")
• Operating Temperature: -10°C to +55°C (+14°F to +131°F)
• Operating Humidity: 10%RH–95%RH
• Power Consumption:
  ≤ 2W (standby)
  ≤ 5W (working)
• Net Weight: 0.25 kg (0.55 lb)
• Gross Weight: 0.48 kg (1.05 lb)

DHI-VTO1000JM

System

• Button Type: Mechanical

Basic

• Camera: 1/4" 1.3 MP CMOS
• Field of View:
  Horizontal: 70°
  Vertical: 40°
• WDR: DWDR
• Illuminator Type: Auto IR
• Day/Night: ICR auto switch
• Audio Input: 1 channel to the microphone; pickup distance 0.5 m
• Audio Output: 1 channel to the speaker
• Indicator Light: 1 indicator light; Green: Power on

Function

• Communication Method: Analog
• Unlock Mode: Remote unlock

Performance

• Casing: ADC12

Port

• Unlock Button: 1
• Door Status Detection: 1

General

• Color: Black
• Power Supply: Powered by indoor monitor
• Installation: Surface mount
• Certifications: CE/FCC

DHI-VTO1000JM

• Accessory:
  Rain cover (included)
  5 m cable (included in kit)

• Dimensions: 131.45 mm × 46.00 mm × 33.80 mm (5.18" × 1.81" × 1.33")

• Protection Grade: IK07; IP66 (Apply silicon sealant to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.)

• Operating Temperature: -30°C to +60°C (-22°F to +140°F)

• Operating Humidity: 10%RH–95%RH

• Power Consumption:
  ≤ 1W (standby)
  ≤ 3W (working)

• Net Weight: 0.18 kg (0.40 lb)

• Gross Weight: 0.40 kg (0.84 lb)
